What you'll learn
- Understand how infrared phototransistors detect heat and flames.
- Compare Analog vs. Digital signals for threshold monitoring.
- Calibrate a sensor trigger point using an onboard potentiometer.
- Implement a basic early-warning serial monitoring system.
What's in the kit
- Arduino UNO

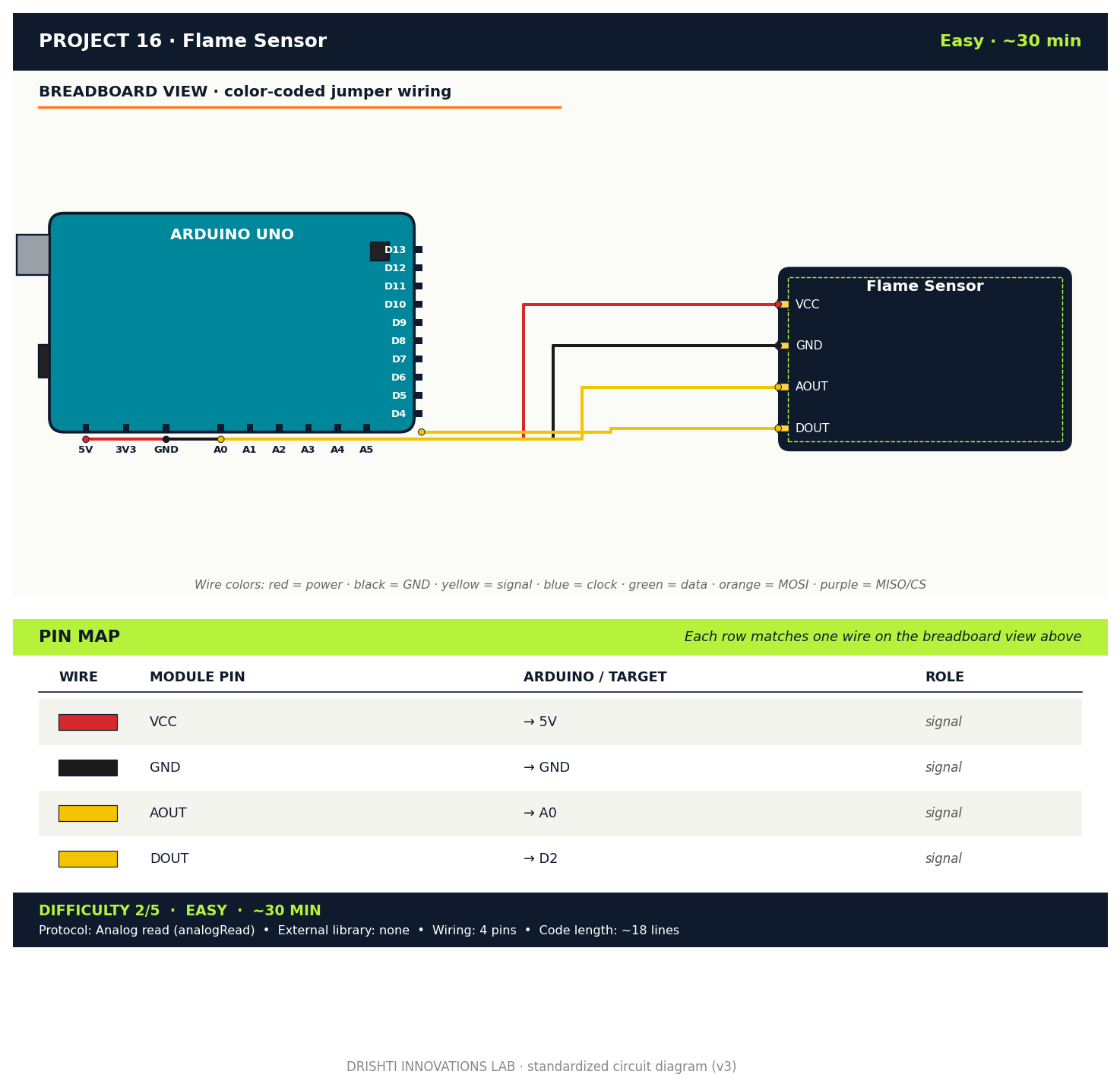

- Flame Sensor Module (4-pin)
- Breadboard
- Jumper Wires (Male-to-Male)×4
- USB Cable (A to B)
Protocol: analog
