What you'll learn
- Understand the relationship between magnetic fields and electrical signals via the Hall Effect.
- Be able to interface digital magnetic sensors with an Arduino.
- Identify the difference between latching and non-latching Hall sensors.
What's in the kit
- Arduino UNO

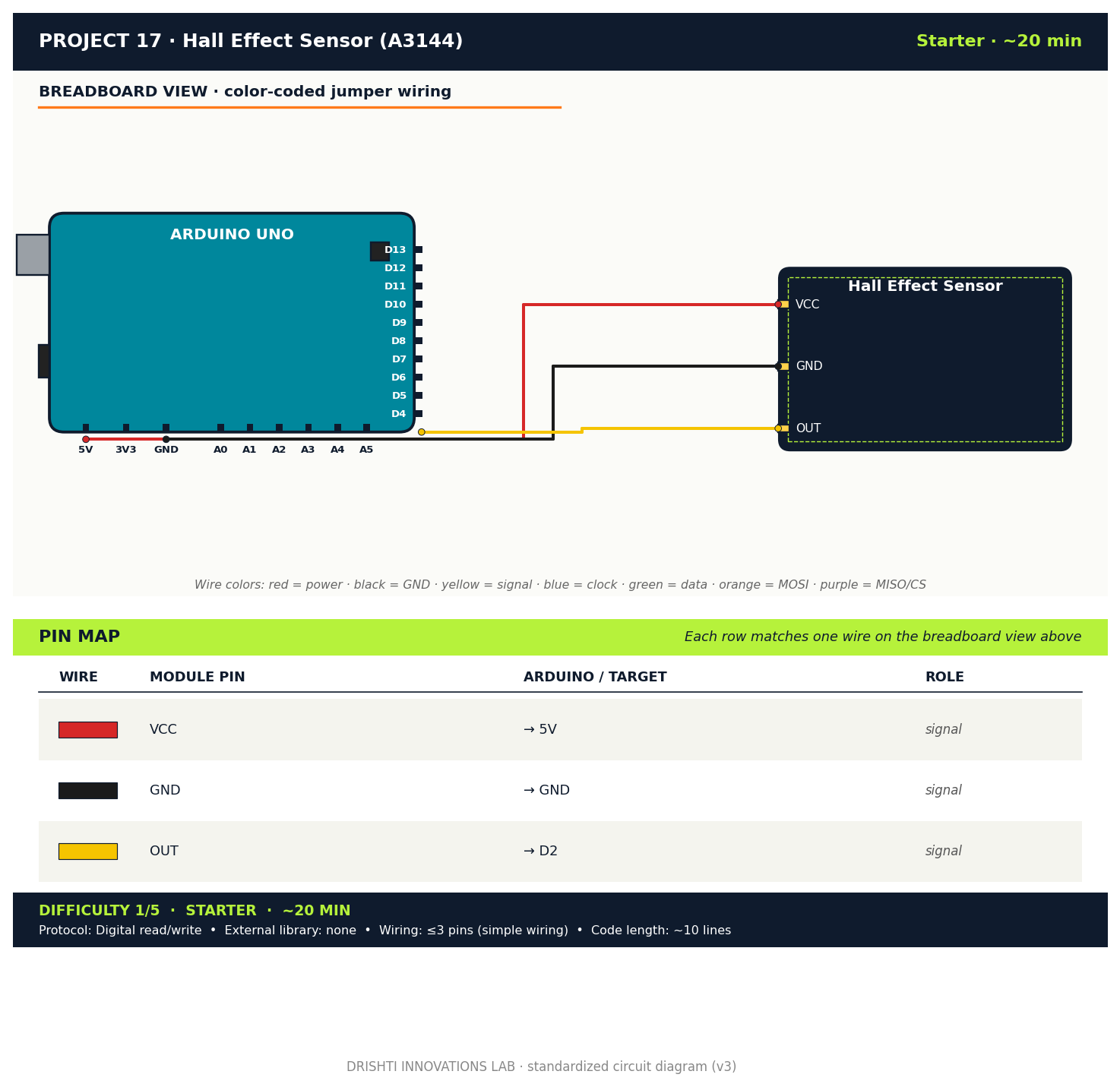

- A3144 Hall Effect Sensor
- Breadboard
- Jumper Wires (M-M)×5
- Strong Magnet (Neodymium preferred)
- 10k Ohm Resistor (Optional pull-up)
Protocol: digital
