What you'll learn
- Understand the difference between Command and Data modes in parallel communication.
- Implement 4-bit data bus wiring to minimize microcontroller pin usage.
- Adjust analog voltage bias using a potentiometer to control display contrast.
- Utilize the LiquidCrystal library to manage cursor positioning and string output.
What's in the kit
- Arduino UNO R3

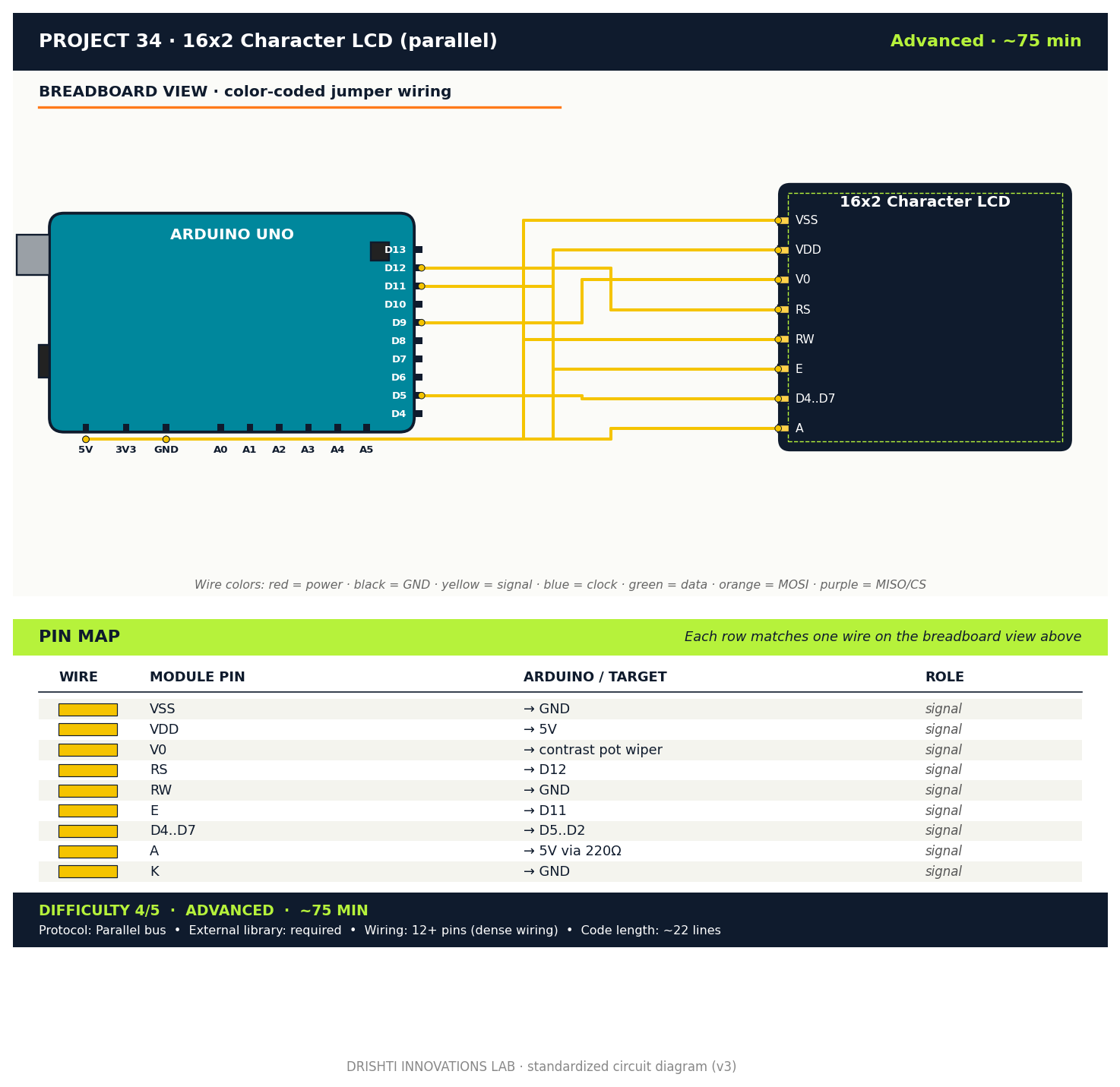

- 16x2 Character LCD (HD44780 compatible)
- 10k ohm Potentiometer
- 220 ohm Resistor
- Breadboard (Full size)
- Jumper Wires (M-M) pack
Protocol: parallel
