What you'll learn
- Understand the working principle of a Negative Temperature Coefficient (NTC) resistor.
- Be able to build and calculate a Voltage Divider circuit for analog sensing.
- Convert raw 10-bit ADC values into meaningful physical units (Celsius).
- Interpret 'Inverse Relationships' in electronics where resistance drops as temperature rises.
What's in the kit
- Arduino UNO

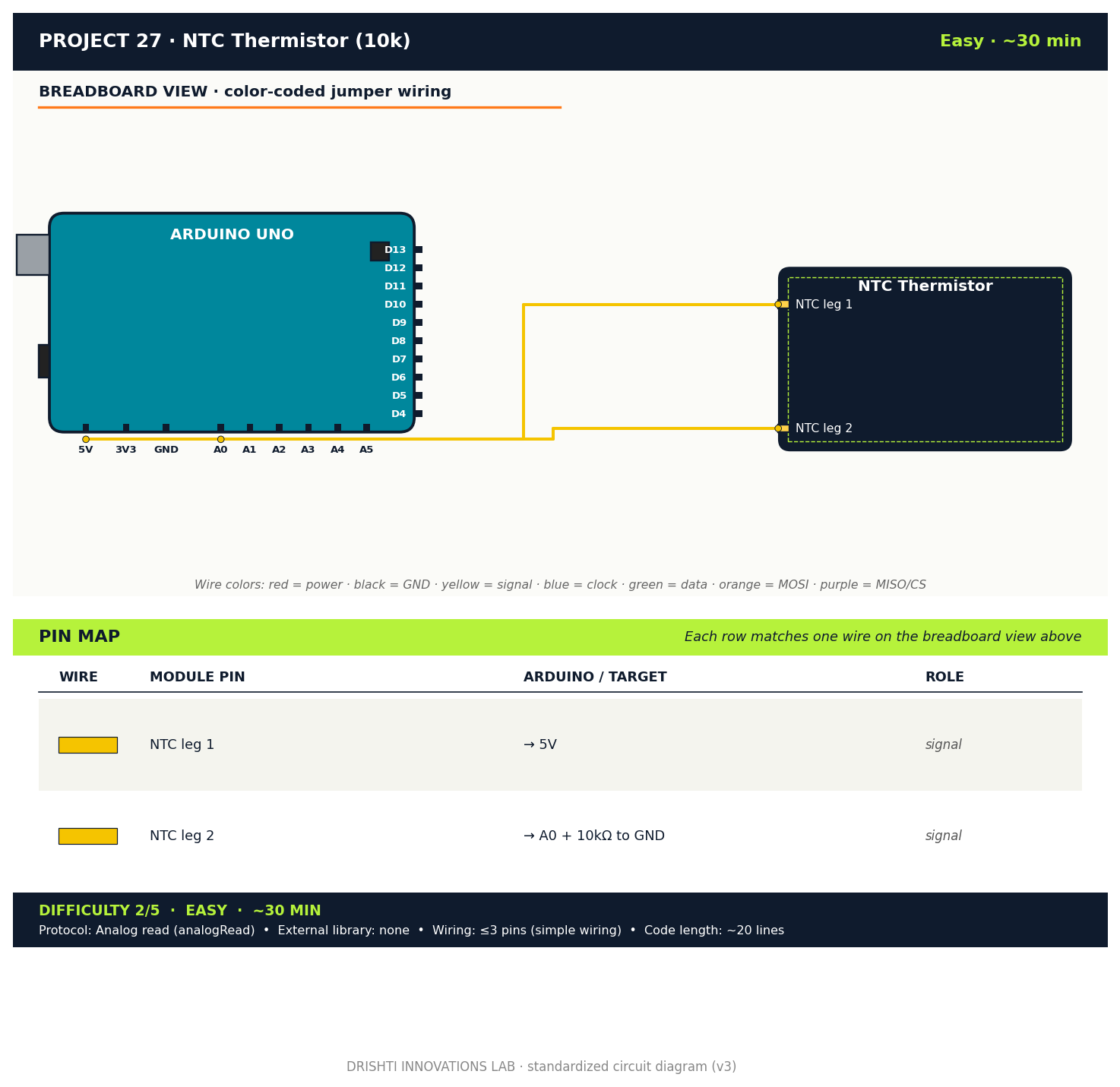

- 10k NTC Thermistor
- 10k Ohm Resistor (Fixed)
- BreadboardJumper Wires×5
- Breadboard
Protocol: analog
